Short answer
The solar panel shading effect reduces output by more than the area covered, because in series-connected cells the weakest link limits the current. A bypass diode takes the shaded cell group out of the circuit, and correct string and MPPT design reduces the loss. On Antalya roofs with permanent shade, an optimizer or microinverter is considered; the decision rests on a roof-specific shade analysis.
Key takeaways
- In a series connection, the cell or panel receiving the least light limits the current; the loss is not linear with the shaded area.
- A bypass diode takes the shaded cell group out of the circuit but lowers the panel voltage.
- Half-cell panels can have an advantage in shade through their two parallel sub-strings; giving the gain as a fixed percentage would not be accurate.
- The cheapest measure is to connect panels receiving similar light to the same string and to separate orientations onto separate MPPT inputs.
- In Antalya, December daily sunshine duration is 4.8 hours (MGM); winter shadows are longer.

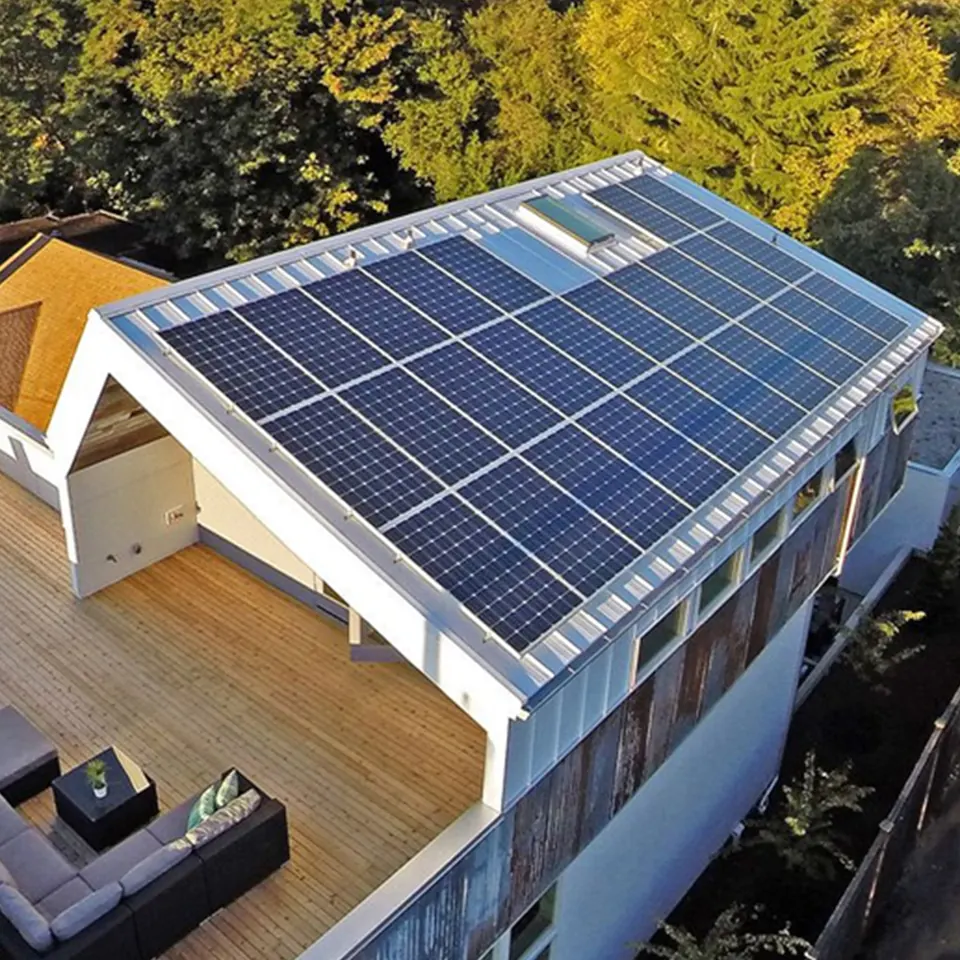

Shade can reduce solar panel output by far more than the area it covers. This is because panels are wired in series and current is limited by the weakest link. Even a small chimney shadow can cut the current of a whole string of panels. Bypass diodes, correct string design and, where needed, optimizers or microinverters limit this loss. That is why a shade analysis is the first step of design for villa, apartment and agricultural roofs in Antalya.
Why does shade on a solar panel reduce production disproportionately?
A panel is made up of cells connected in series. In a series circuit the current is the same at every point; so a single shaded cell restricts the current that the other, illuminated cells could produce. When we also connect panels in series to form a string, the same rule carries over to the string: the panel receiving the least light determines the current of the string.
For this reason, shade loss is not linear with the area covered. A leaf or bird dropping covering a few percent of the panel can cause a much larger power loss if there is no suitable protection. A shaded cell can also heat up when it is forced to carry the current of the illuminated cells; this is called a hot spot and can damage the material over the long term.
How does a bypass diode work?
A bypass diode is a protective component connected in parallel with groups of cells inside the panel. When a group of cells is shaded, the diode kicks in and routes the current around that group. The shaded group is thus taken out of the circuit and the rest of the panel keeps producing. The number of diodes and the layout of the cell groups vary by panel model; you should read the exact information from the manufacturer's datasheet.
A bypass diode has a cost: because the shaded group is switched out, the panel's voltage drops. Although the other panels in the string are not affected, the drop in string voltage changes the inverter's operating point. The diode only prevents a disaster; it does not cancel the effect of shade.
Do half-cell panels have an advantage in shade?
Half-cut panels are made by cutting the cells in half. The TommaTech TT605-144TN10 is a 605 Wp TOPCon panel made up of 144 half cells. In a half cell the current is halved; because resistive losses are proportional to the square of the current, losses at cell level are reduced. The benefit against shade, however, comes not from cutting the cells but from the panel being connected like two parallel sub-strings; if one half is shaded, the other half can keep producing (according to EnergySage's explanation). It would be wrong to express the net module-level gain as a fixed percentage; you can see our article on half-cut cell technology, where we explain the technology in detail.
Limiting shade loss with string design and MPPT
Let us make this concrete with an example. The TommaTech 605 W panel has a Vmp of 43.95 V and an Imp of 13.77 A (datasheet). If you connect 12 panels in the same string, the string voltage is about 527 V and the power about 7.26 kWp (calculated as 12 x 43.95 V and 12 x 605 W). If one panel in the string is shaded and its bypass diode kicks in, the string voltage drops and the inverter's MPPT has to search for a new operating point. Production falls not only by the share of the shaded panel but by the extent to which the current and voltage balance of the string is disturbed. A good design calculates this interaction from the start.
The cheapest measure against shade is taken at the design stage. The first rule is to connect panels receiving similar light to the same string. Putting a group of panels that is shaded in the morning in the same string as a group that stays exposed all day drags the whole string down.
- Separating by orientation: Connecting east-facing and west-facing surfaces to separate strings and, where possible, to separate MPPT inputs.
- Separating shaded and unshaded panels: Panels likely to be shaded are grouped in their own string.
- String length: Long strings can be more sensitive to shade; this is considered together with the inverter's MPPT voltage range.
- Layout: Placing panels in portrait or landscape orientation changes which cell groups the shadow falls on.
Optimizers and microinverters: panel-level solutions
On roofs where shade is unavoidable, panel-level electronics come into play. An optimizer performs MPPT at the output of each panel, reducing the extent to which one panel's shade limits the others; the conversion is still done by the central inverter. A microinverter, on the other hand, converts DC to AC behind each panel, and the panels operate independently of one another. Our article on microinverters and optimizers, which compares the two approaches, has the details.
| Solution | What it does | When it makes sense |
|---|---|---|
| Bypass diode | Takes the shaded cell group out of the circuit | Standard protection in every panel |
| String and MPPT separation | Groups panels receiving similar light | If orientations differ or shade is partial |
| Optimizer | Performs MPPT per panel | Scattered, changing shade |
| Microinverter | Converts separately at each panel | Fragmented, complex roofs |
| Removing the shade source | Pruning trees, relocating panels | First choice if the source can be moved |
Panel-level electronics mean an additional component and an additional point of failure. For this reason, if the shade is slight and can be resolved, it makes sense to fix the layout first; optimizers or microinverters come to the fore on roofs where the shade is permanent.
Common shade sources in Antalya
In Antalya the most frequent causes of shade are elements on the roof itself. On villa roofs you see chimneys, antennas and air-conditioning outdoor units; on apartment buildings, elevator towers, water tanks and roof access structures; on detached houses, solar water heater collectors. In houses with gardens, palm and citrus trees, and in coastal areas, neighboring tall buildings cast shadows at different hours of the year.
The season matters too. Because the sun is low in winter, shadows get longer. According to MGM (Turkish State Meteorological Service) data, the average daily sunshine duration in Antalya is 4.8 hours in December and 11.7 hours in July. Winter shade can therefore be more decisive than summer shade; the shade analysis should be done for the least favorable time of the year. Mountains to the north and west of Antalya can also create horizon shading. For this reason, the PVGIS calculation we use in this series also takes into account the horizon profile calculated from a DEM.
On flat roofs, one source of shade is the panels themselves. When panels are installed tilted rather than flat, the front row can shade the rear row, especially on winter mornings. For this reason, row spacing, angle and area are calculated together on a flat roof. We covered angle selection in our article on the solar panel angle and direction for Antalya.
How is a shade analysis done?
At the survey stage the roof and surroundings are measured; the height and position of objects that cast shade are recorded. Then the sun's path through the year is calculated in a simulation that shows which panels the shadow falls on at which hours. The result determines the panel layout, the string distribution and, if necessary, the need for optimizers. After installation, a hot-spot scan with a thermal camera can be carried out for verification; we explained the method in our article on checking panels with a thermal camera.
Not every shadow is permanent. Bird droppings, leaves and heavy dust also act like local shade on the panel surface. A cleaning and maintenance routine reduces this kind of shade; for details, see the article on dust, pollen and solar panels.
Sometimes simple solutions are enough to reduce shade: pruning a tree, moving a panel to another part of the roof or leaving a gap next to the water tank. For systems that have a shade problem after installation, maintenance and monitoring data also provide guidance. It is possible to see on the monitoring screen that a single panel or string is producing less than the others.
Practical shade checklist
- List the objects on and around the roof that cast fixed shade (chimney, tank, antenna, tree).
- Pay particular attention to shade at midday in winter; it is longer than summer shade.
- Ask whether shaded panels will be connected to a separate string or MPPT input.
- Compare whether an optimizer or microinverter is truly necessary against the simulation result.
- After the panels are installed, monitor production data and flag any panel running below expectations.
Conclusion
Shade causes more than just a loss of area in a solar panel, because in a series connection the weakest link determines the current. Bypass diodes, correct string design and, if needed, panel-level electronics limit the loss, but the most effective solution is often to move the shade source away from the layout. For a shade analysis of your roof and the right equipment choice, you can request a free site survey.
Frequently asked questions
How much does shade reduce solar panel output?
Giving an exact percentage would not be accurate, because the loss depends on the shape of the shadow, the panel layout and the connection design. In a series connection the weakest panel limits the current, so the loss can be much larger than the shaded area. Bypass diodes and correct string design limit this effect. A roof-specific shade simulation shows the real loss.
What does a bypass diode do?
When a group of cells inside the panel is shaded, a bypass diode lets the current pass around that group. The shaded group is thus taken out of the circuit and the rest of the panel keeps producing. It also limits overheating of the shaded cells. The number of diodes varies by panel model and is listed in the datasheet; it does not completely eliminate the effect of shade.
Is an optimizer essential on a shaded roof?
No, it is not essential. If the shade is fixed and limited, connecting the panels to a separate string or MPPT input may be enough. An optimizer makes sense on roofs where the shade changes during the day and with the seasons, and is scattered and permanent. The decision requires a shade simulation of the roof and an equipment comparison; an extra component also means an extra point of failure.
Does a microinverter solve the shading problem?
Because a microinverter converts each panel separately, one panel's shade does not limit the output of the others. This is an advantage on roofs where shade varies. The shaded panel's own output still falls, though. A microinverter also means more components; the choice should be made based on the roof structure, the number of panels and maintenance expectations.
What shade sources are most common on roofs in Antalya?
On villa and apartment roofs, chimneys, antennas, air-conditioning outdoor units, elevator towers and water tanks are the most frequent shade sources. Solar water heater collectors on detached houses, palm and citrus trees at houses with gardens, and neighboring tall buildings in coastal areas also cast shadows. Because the winter sun is low, shadows are longer in winter.
Are half-cut panels better in shade?
The advantage in shade comes not from cutting the cells in half but from the panel being connected like two parallel sub-strings. If one half is shaded, the other half can keep producing. In other words, it is the panel's internal wiring design that provides the benefit. Stating the module-level gain as an exact percentage would not be accurate; it varies with the internal wiring, the shape of the shadow and the hour it falls.
How is shade loss detected?
On the production monitoring screen you can see that a panel or string is running below the others. In addition, a hot-spot scan can be done with a thermal camera; shaded and heating cells appear hotter. Before installation, the roof is measured and the sun's path through the year is simulated, so shade is accounted for at the design stage.
